Genset Perkins TP165T 150 KVA. Apakah Anda membutuhkan Genset 150 KVA ?, Kami menjual Genset TP165T untuk kebutuhan Genset kapasitas 150 KVA. Berikut ini adalah spesifikasinya :
| Model | Engine | Standby | Rated | ||
| KVA | KW | KVA | KW | ||
| TP165T | 1106A-70TAG2 | 165 | 132 | 150 | 120 |
DIESEL GENERATING SET 400/230V-50Hz-3Phase
STANDARDS:
Genset: GB/T2820—2009,ISO8528
Alternator: STAMFORD, UCI274F
Diesel Engine: PERKINS , 1106A-70TAG2
Standby Power: Continues running at variable load for duration of an emergency. No overload is permitted on these ratings.
Prime Power: Continues running at variable load for unlimited periods with 10% overload available for 1 hour in any 12 hour period.
CONFIGURATION:
Standard: Engine, alternator, cooling system, Base frame (excluding fuel
tank), shock absorber, air inlet system, control box (including mains floating
charge), plastic fan blades (when the engine and water tank do not bring).
Optional: Base frame (including fuel tank), water jacket heater, fuel water
separator, fuel heater, fuel level sensor (only supporting underframe tank),
switch box (with switch), power switch, the water level sensor, motor anti
condensation heater, automatic fueling system (only supporting base frame
including fuel tank), battery frame.
Accessories: Silencer, bellow, exhaust silencing system accessories (with the
matching engine), regular battery, starting cord assembly, data of gen-set,
random tool (with the matching engine.
Model
TP165T
Power(ESP)
kVA/kw
165/132
Power(PRP)
kVA/kw
150/120
Rated Voltage
V
400
Rated Current
A
239
Rated rotation speed
r/min
1500
Power Factor
0.8
Fuel Consumption
Litre/hour
45.8
Fuel Tank Capacity
Litre
Open Type :277 / Silent Type:370:
Noise level
dB(A)@7m
Silent Type: 76±2
GEN-Set
Dimension ( L*W*H )
Weight

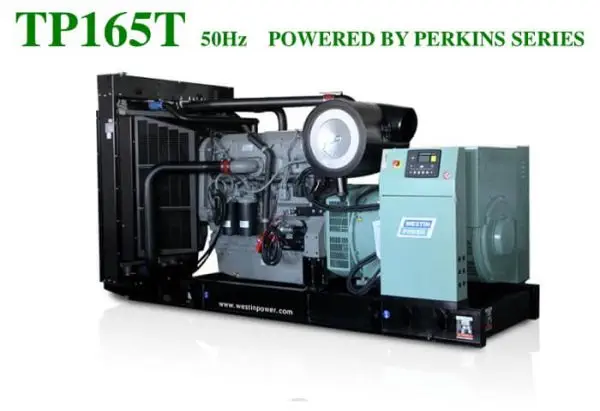

Open Type
2450mm*950mm*1535mm
1492 Kg

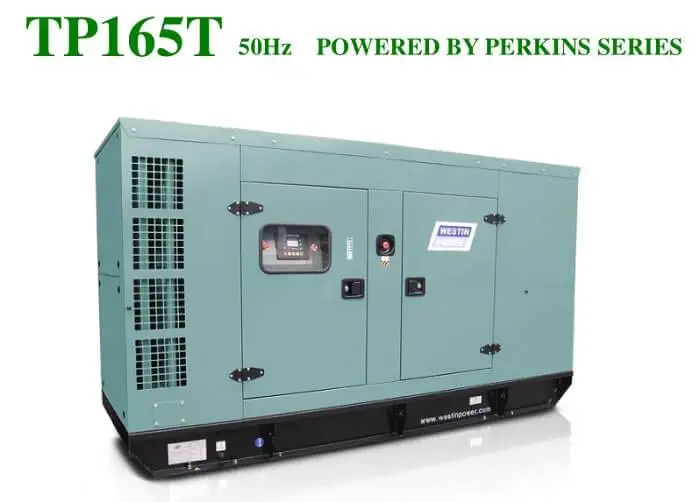

Silent Type
3456mm*1126mm*1900mm
2492 Kg
