Genset TP15T 13 KVA

Genset Perkins TP15T 13 KVA

STANDARDS:
Genset: GB/T2820—2009,ISO8528
Alternator: STAMFORD, S0L2-G1
Diesel Engine: PERKINS , 403A-15G1
Standby Power: Continues running at variable load for duration of an emergency. No overload is permitted on these ratings.
Prime Power: Continues running at variable load for unlimited periods with 10% overload available for 1 hour in any 12 hour period.

SKU: TP15T Category: Tags: ,

Genset TP15T 13 KVA. Anda membutuhkan Genset 13 KVA ?, Kami menjual Genset TP15T untuk kebutuhan Genset kapasitas 13 KVA. Berikut ini adalah spesifikasinya :

Model Engine Standby Rated
KVA KW KVA KW
TP15T 403A-15G1 15 11 13 10

TECHNICAL SPECIFICATIONS
DIESEL GENERATING SET 400/230V-50Hz-3Phase
WEIGHT AND DIMENSIONS
STANDARDS:
Genset: GB/T2820—2009,ISO8528
Alternator: STAMFORD, S0L2-G1
Diesel Engine: PERKINS , 403A-15G1
Standby Power: Continues running at variable load for duration of an
emergency. No overload is permitted on these ratings.
Prime Power: Continues running at variable load for unlimited periods
with 10% overload available for 1 hour in any 12 hour period.
CONFIGURATION:
Standard: Engine, alternator, cooling system, Base frame (excluding fuel
tank), shock absorber, air inlet system, control box (including mains floating
charge), plastic fan blades (when the engine and water tank do not bring).
Optional: Base frame (including fuel tank), water jacket heater, fuel water
separator, fuel heater, fuel level sensor (only supporting underframe tank),
switch box (with switch), power switch, the water level sensor, motor anti
condensation heater, automatic fueling system (only supporting base frame
including fuel tank), battery frame.
Accessories: Silencer, bellow, exhaust silencing system accessories (with the
matching engine), regular battery, starting cord assembly, data of gen-set,
random tool (with the matching engine.
Model TP15T
Power(ESP) kVA/kw 15/12
Power(PRP) kVA/kw 13/10
Rated Voltage V 400
Rated Current A 22
Rated rotation speed r/min 1500
Power Factor 0.8
Fuel Consumption Litre/hour 3.7
Fuel Tank Capacity Litre Open Type :88 / Silent Type:121
Noise level dB(A)@7m Silent Type: 66±2
GEN-Set Dimension ( L*W*H ) Weight

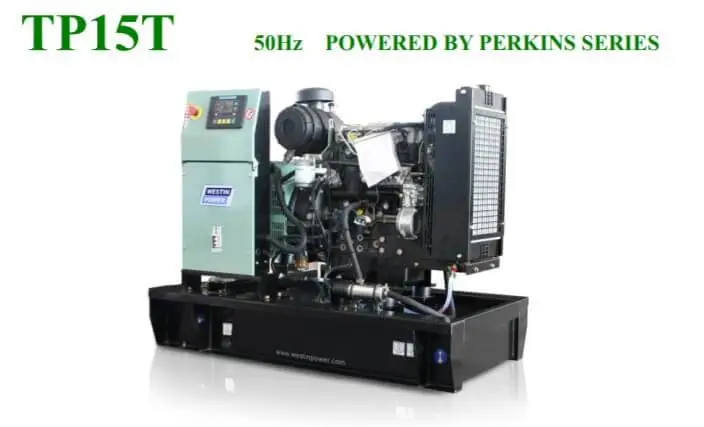

Open Type 1320mm*700mm*1015mm 446 Kg

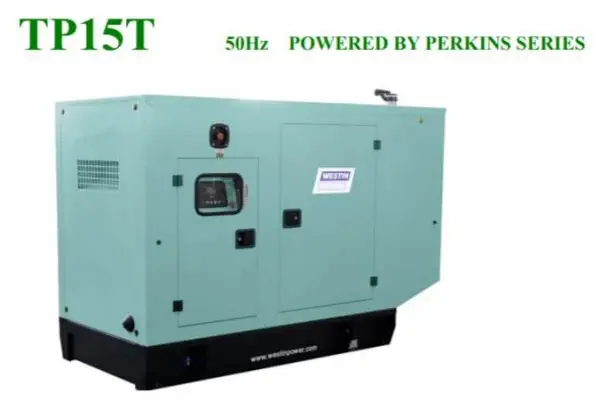

Silent Type 2116mm*956mm*1390mm 794 Kg

ENGINE Specification
Manufacturer: PERKINS
Model 403A-15G1
Engine speed Rated 1500 RPM
Cylinder /Arrangement 3 / L
Displacement 1.496 L
Bore and Stroke 84 mm × 90 mm
Compression ratio 22.5 : 1
Max. stand by power at rated RPM 13.5KW
Frequency regulation , steady state ≤0.75%
Governor : type Electrical
Exhaust System
Fuel System
Fuel consumption100% (of the Prime Power) 3.67 L / h
Fuel consumption75% (of the Prime Power) 2.79L / h
Fuel consumption50% (of the Prime Power) 2.04L / h
Fuel consumption25% (of the Prime Power) 1.32L / h
Oil system
Total oil capacity w/filters 6.0 L
Air intake
Engine air flow 1.1L/min
Coolant System
Radiator & engine capacity 6.0 L
Max water temperature 112°C
Thermostat 82-95°C

Demikianlah penjelasan Genset TP15T 13 KVA. jika anda membutuhkan Genset 13 KVA atau ingin service atau maintenance genset 13 KVA anda, silahkan hubungi team kami.
